AP 11X Series Card Reader Mounting Kit

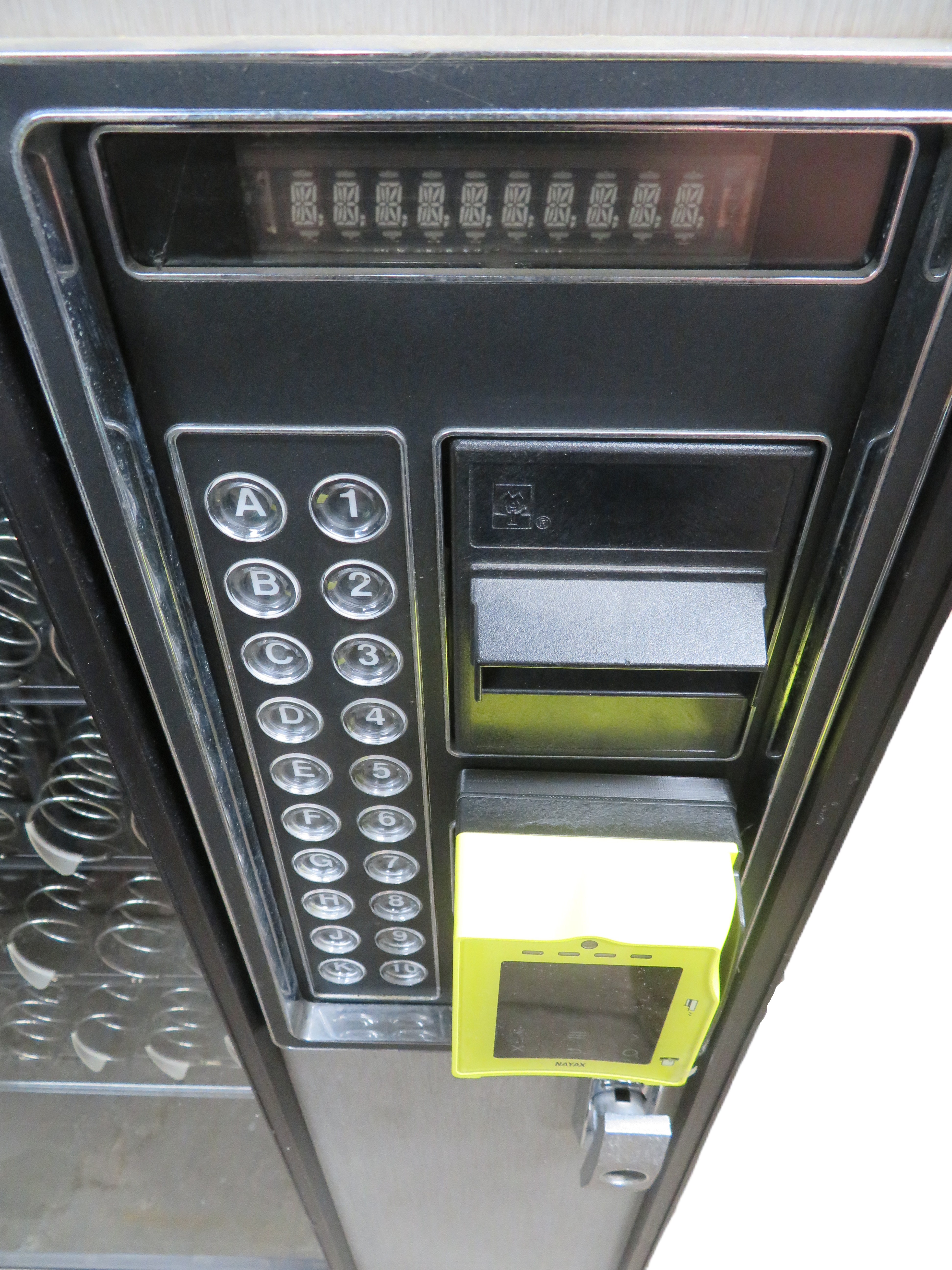

The AP 11x series card mounting kit allows a stand-alone card reader mask to be mounted directly below the validator. The benefits of this mounting method include no extension harness being required for the mask and the placement is ADA compliant.

The kit is installed as follows:

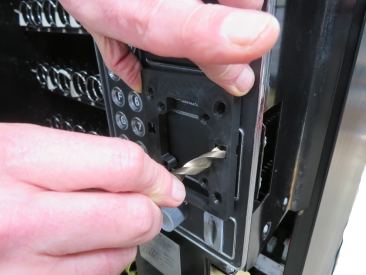

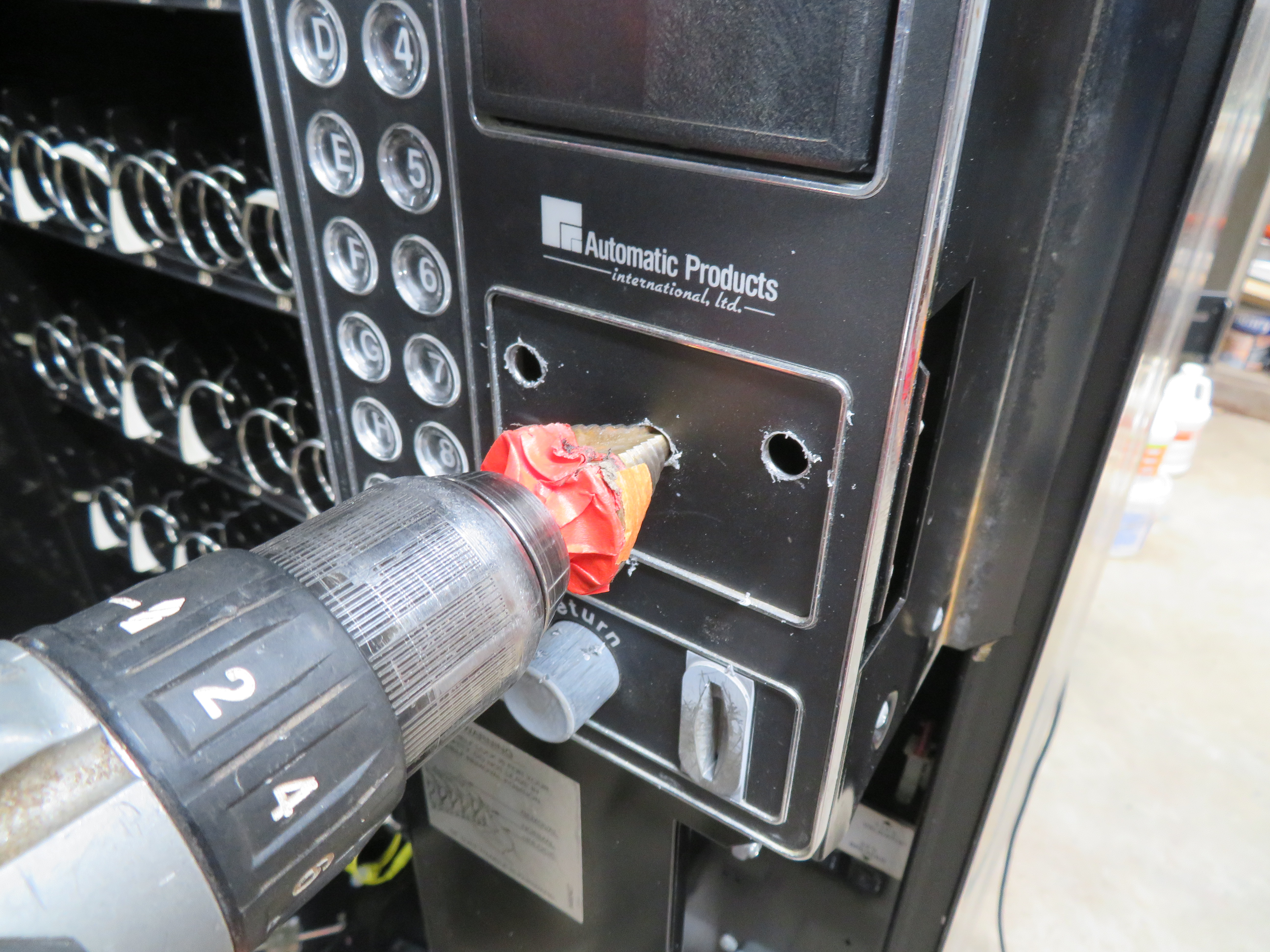

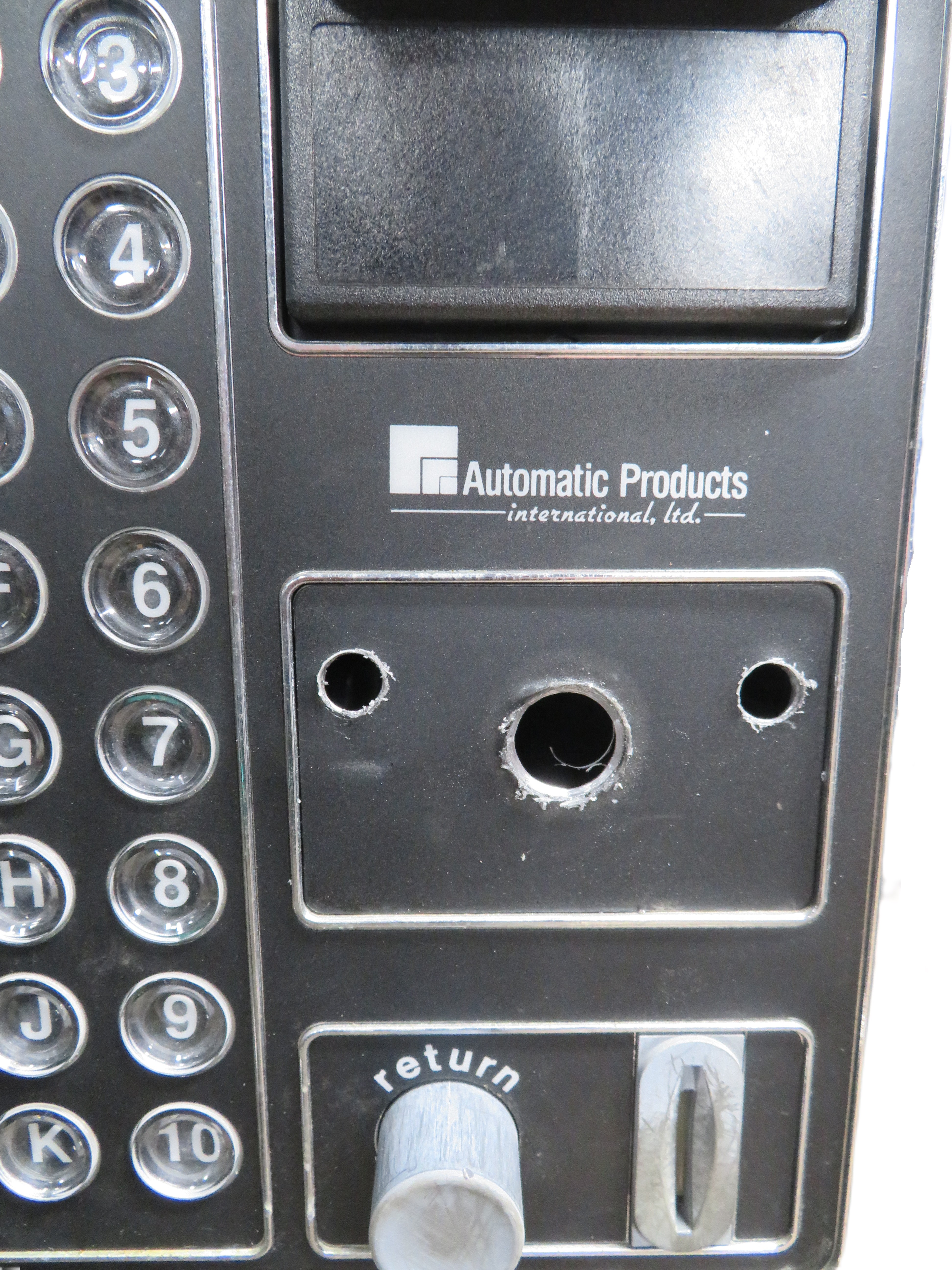

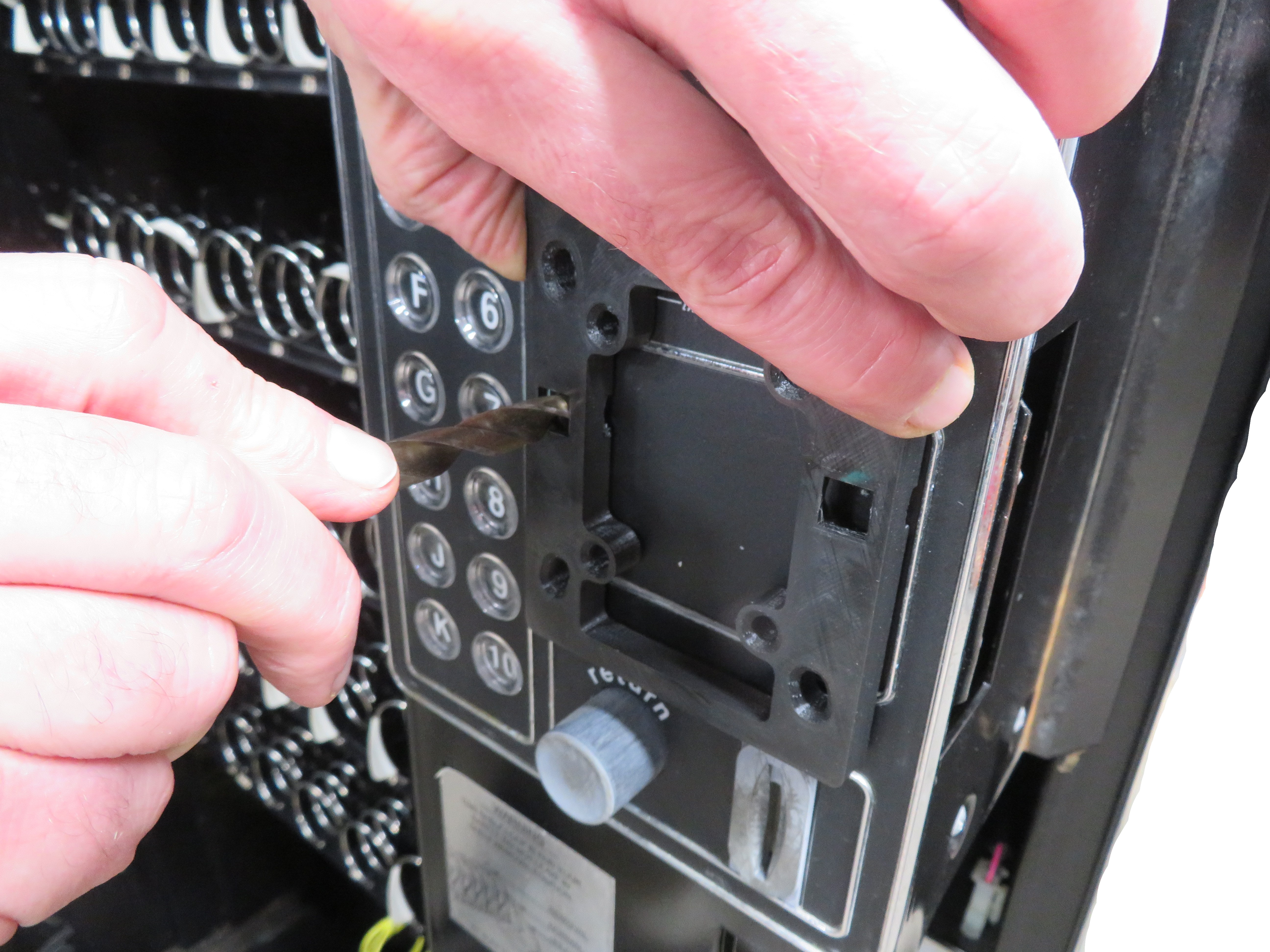

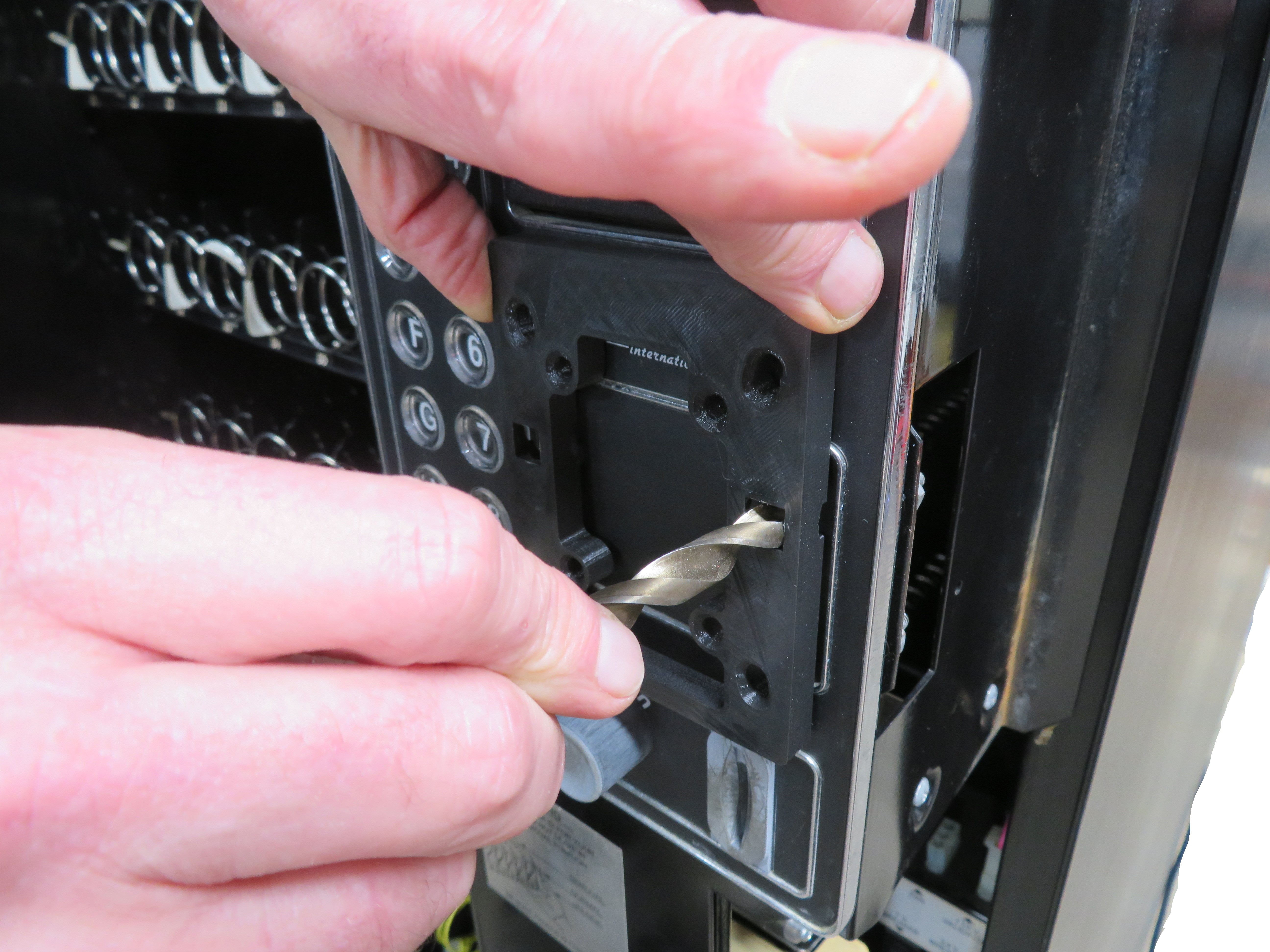

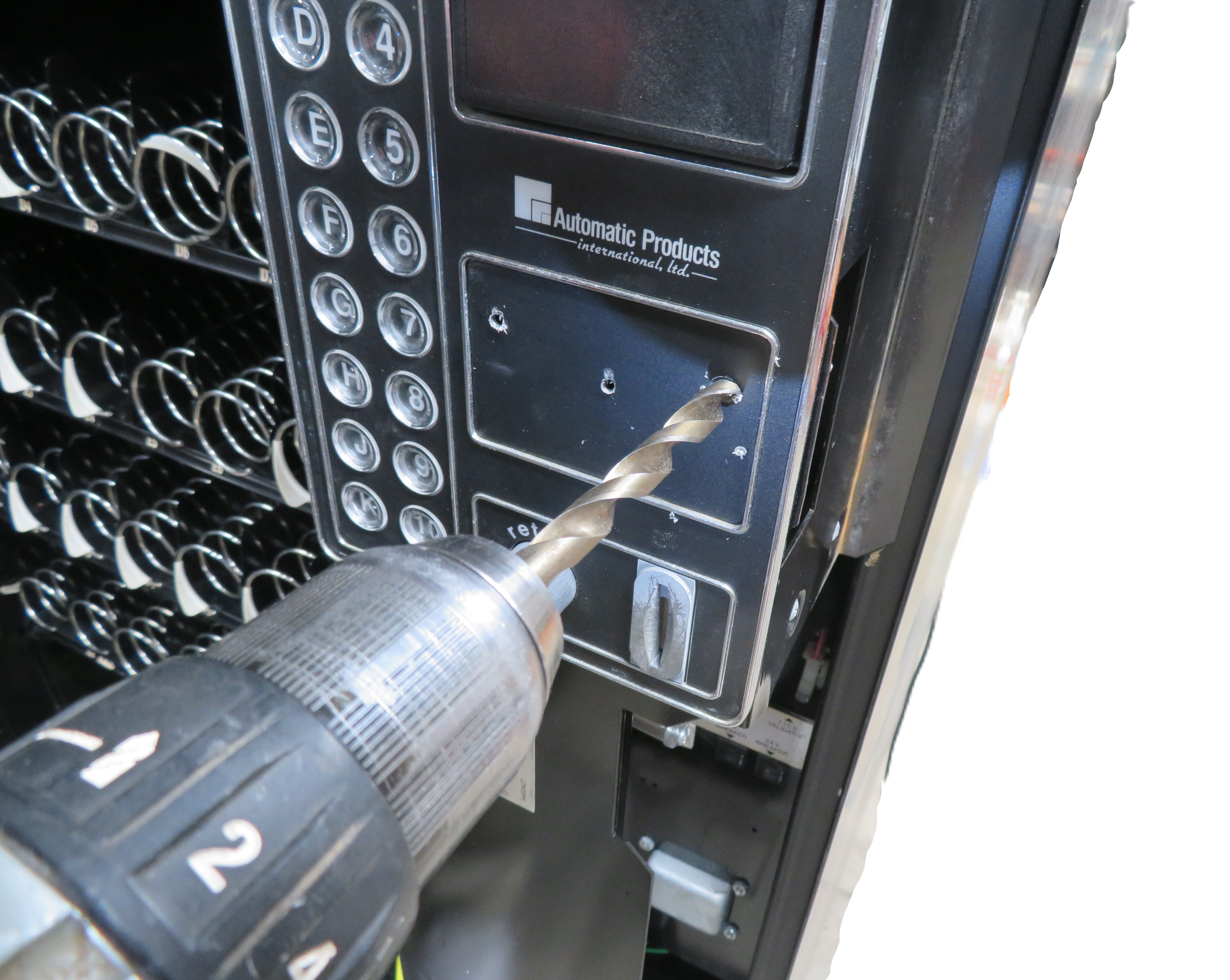

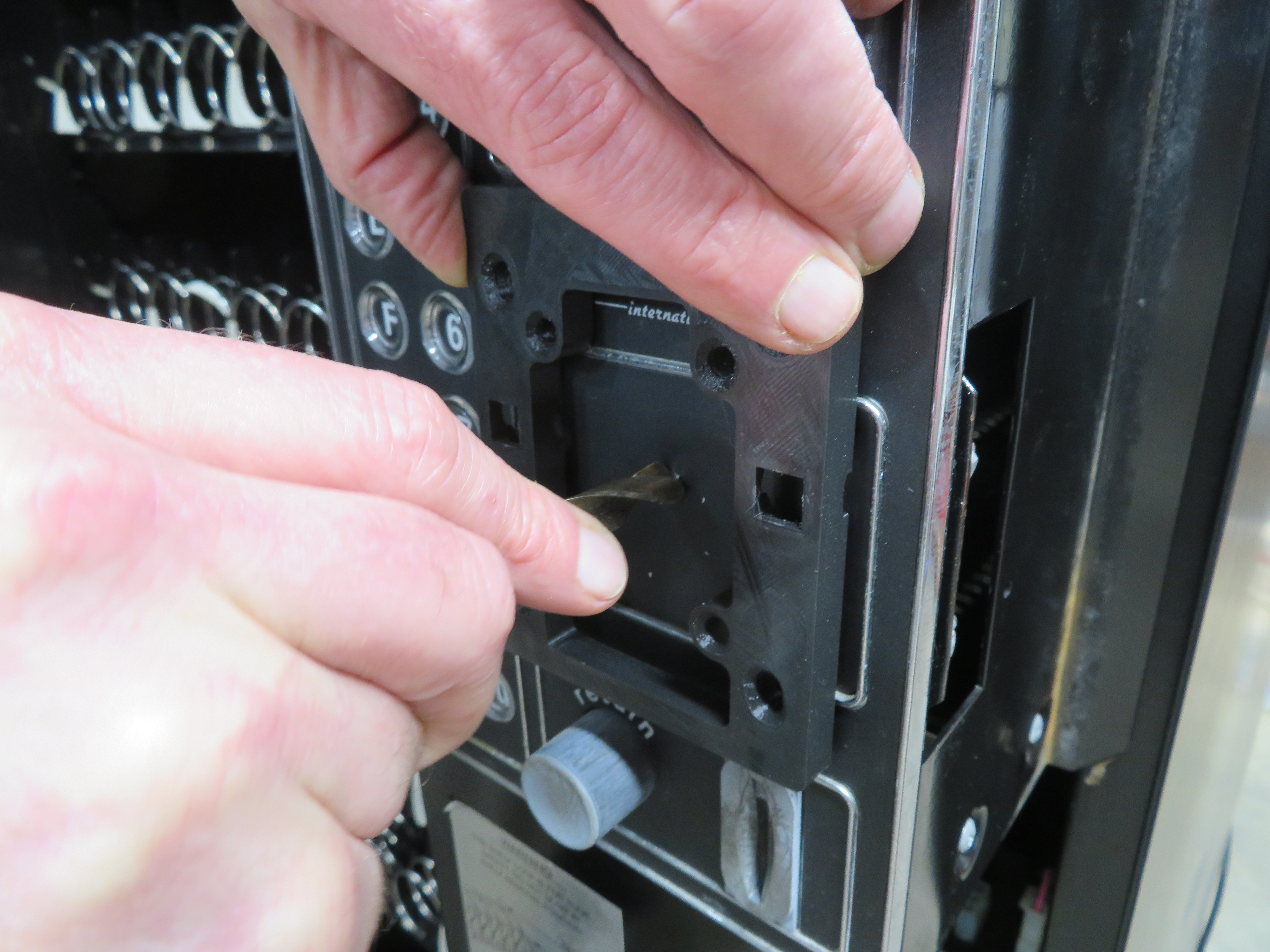

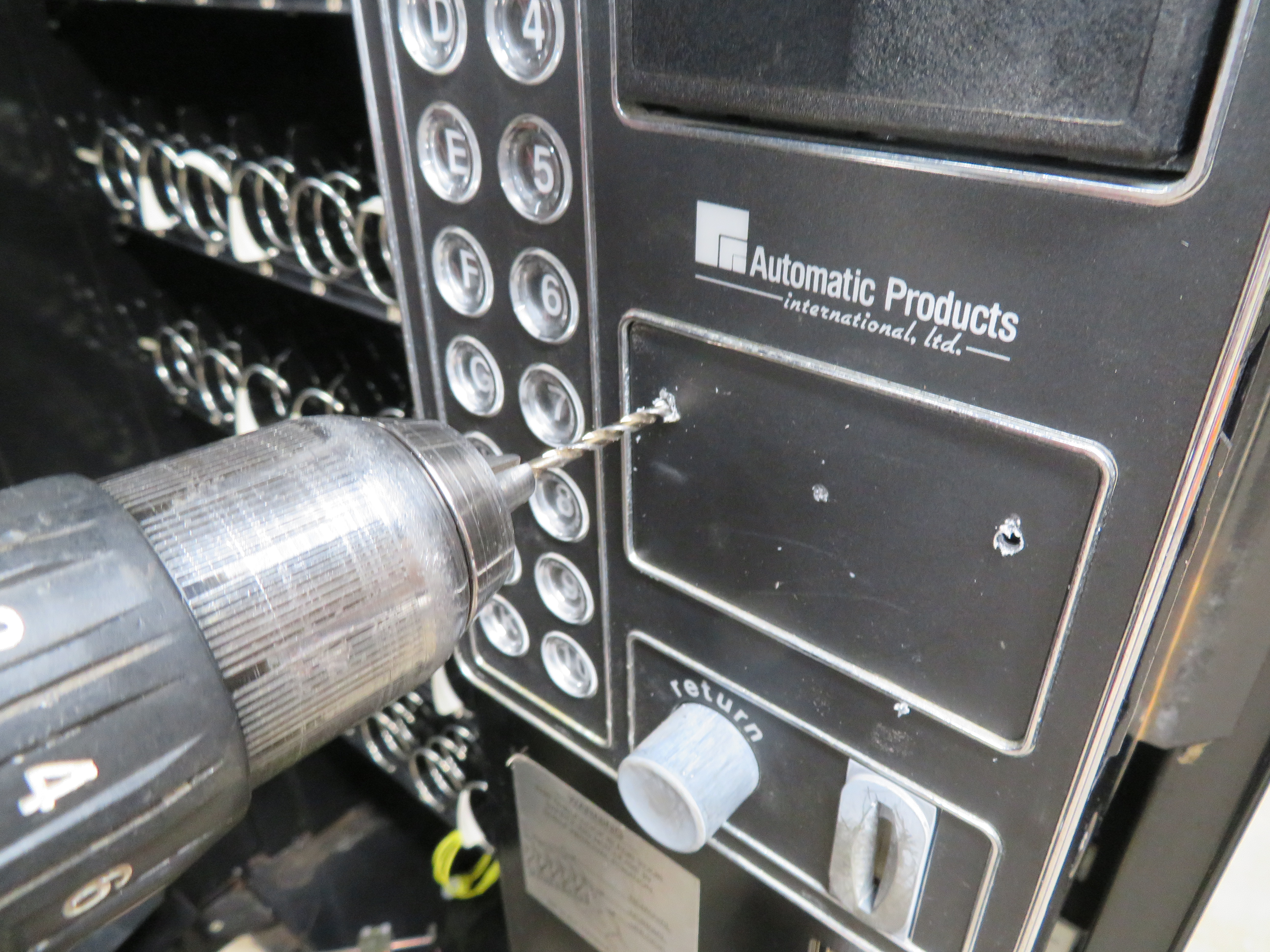

• First, use the black mounting bracket to mark the two 3/8” mounting holes. Then, drill these holes, along with a hole for the harnessing.

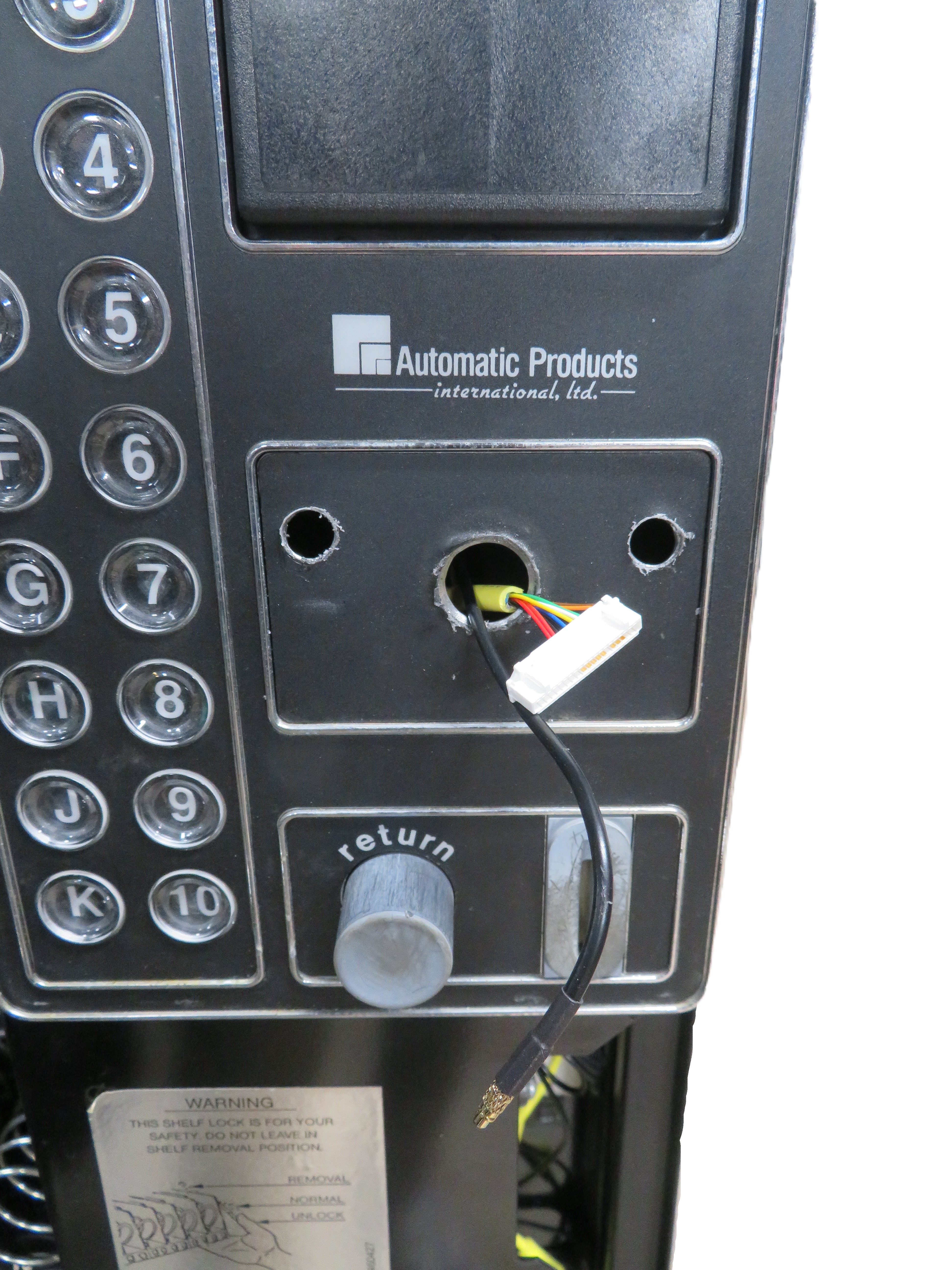

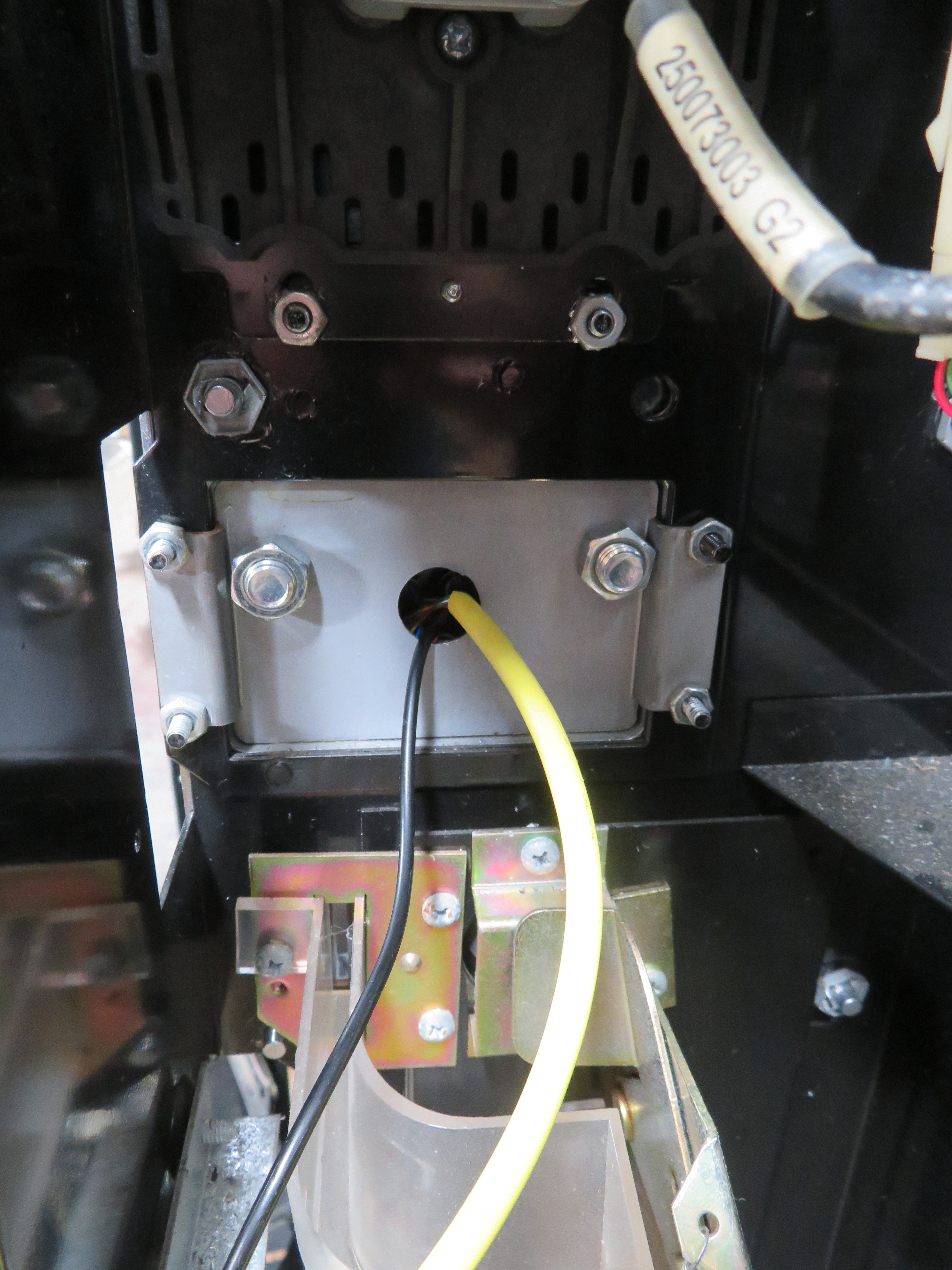

• Next, feed the harnessing through the hole and attached to the mask.

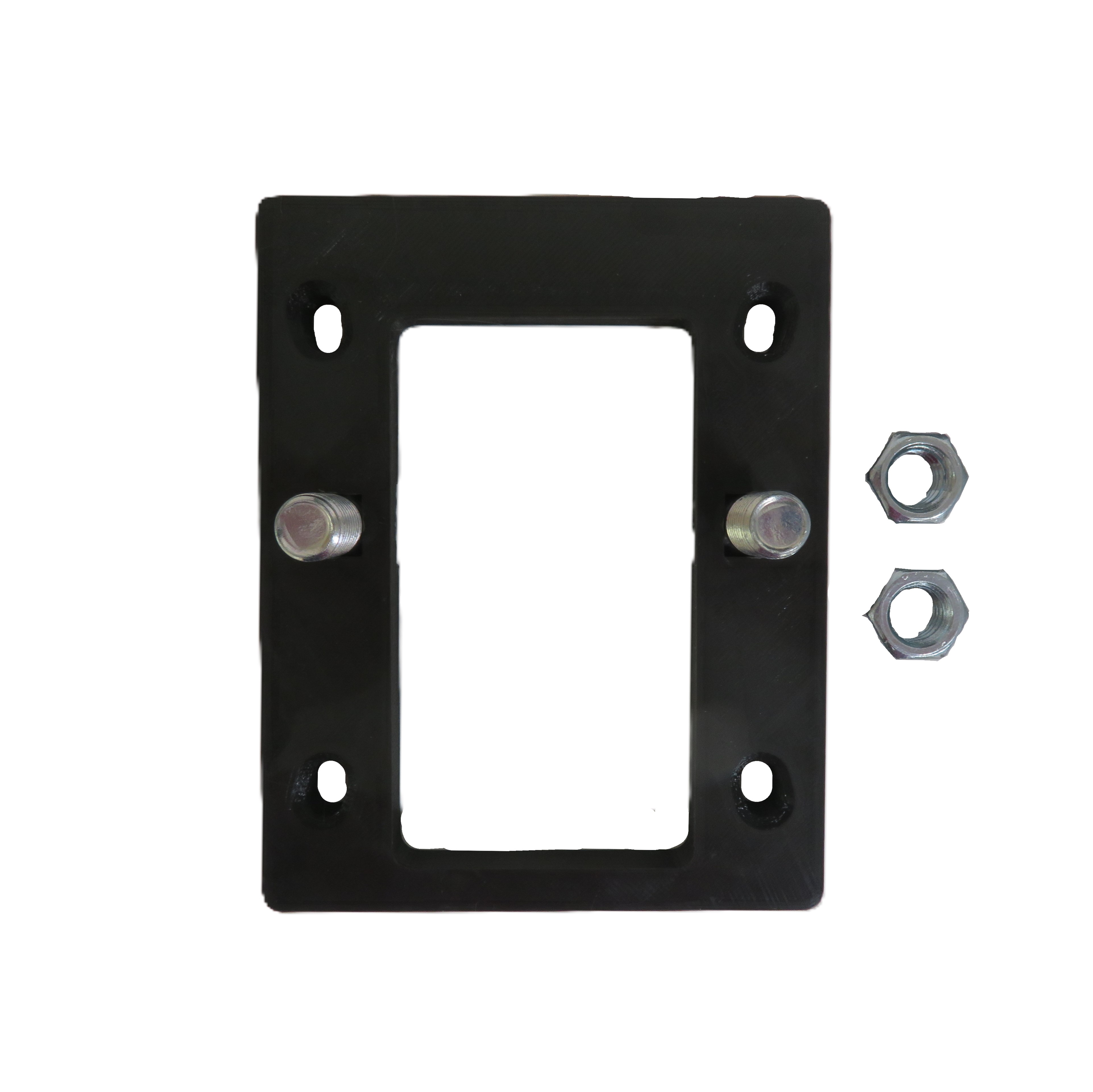

• Finally, mount the bracket secure it using the two-fender washer and 3/8” nuts supplied with the kit.

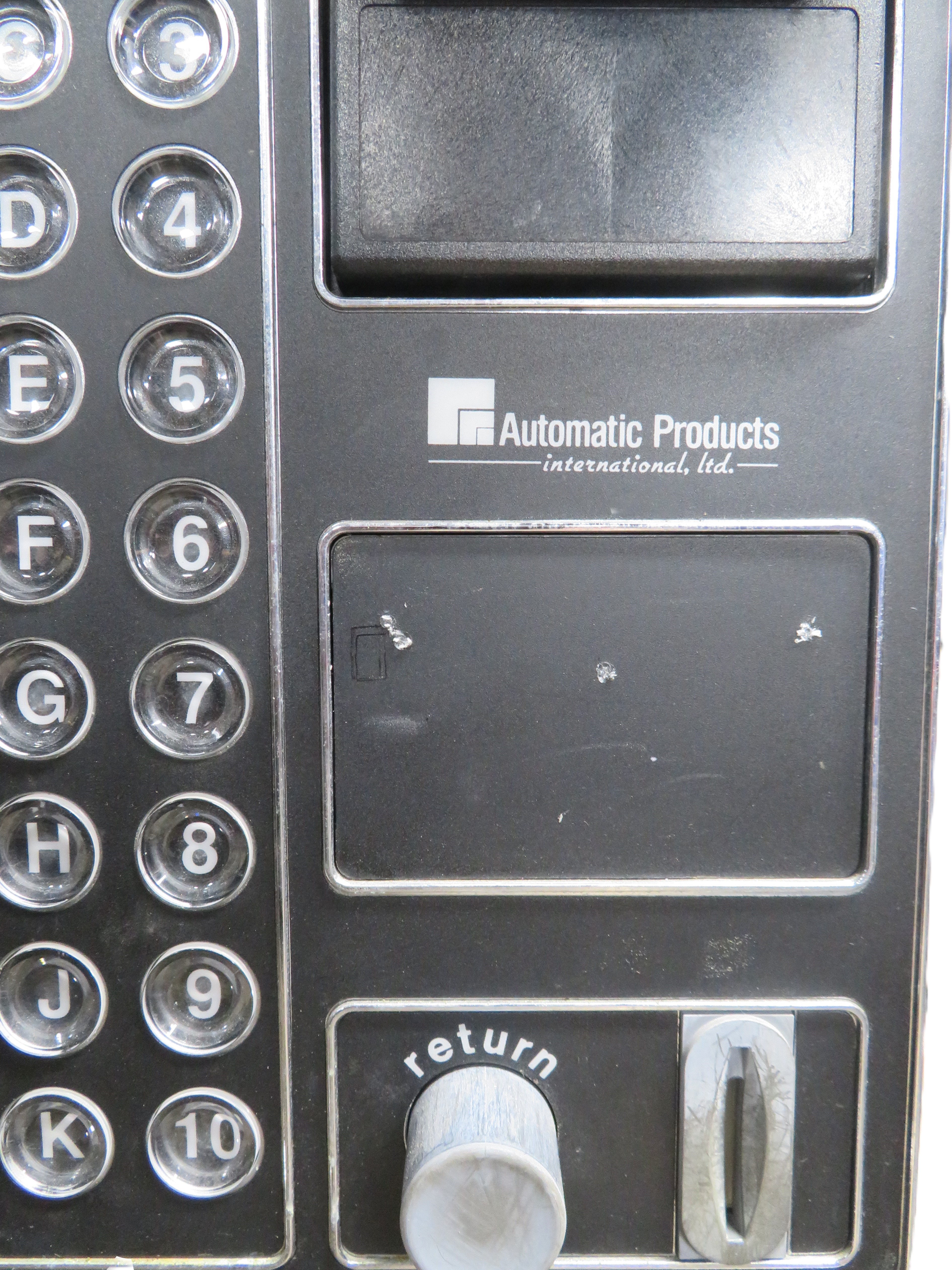

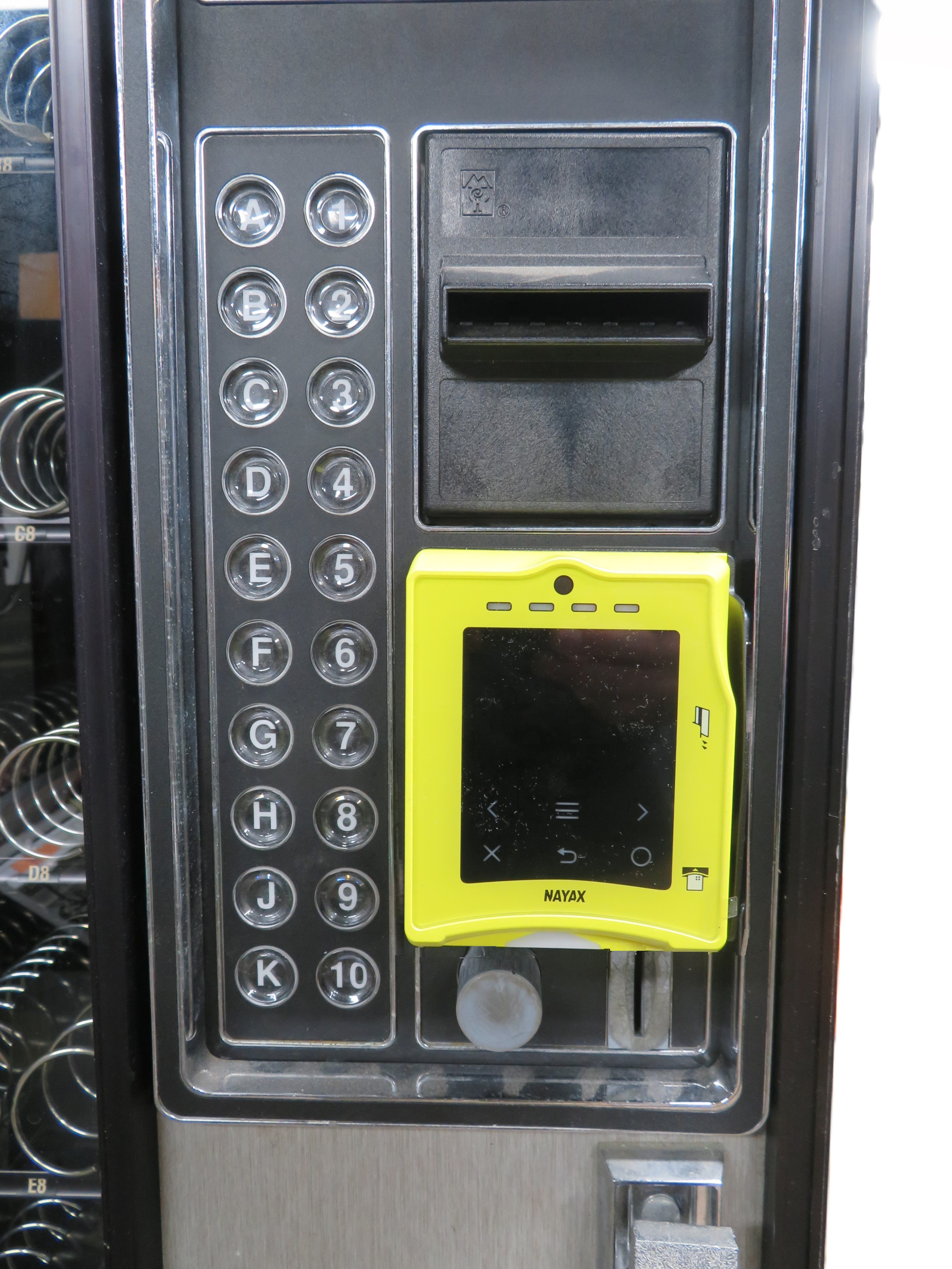

Please use the pictures provided to aid in installation.
