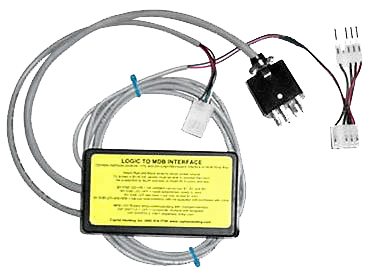

MDB Module Conversion Kit for Snack Vending Machines
SKU: KITMDBMODULE
This easy to install kit converts a vendor originally configured for a dumb mech (12 pin or 15 pin - 24V or 115V) to the MDB interface. All required hardware is included. Since you are updating to MDB, the changer and validator must also be MDB. This kit must be installed by a professional service technician that understands vending machines. Also needs to know how to program the attributes of a card reader.
The recommended MDB components are listed below:
If you need a MDB coin changer, the recommended model is found here. Please select Option 3.
If you need a Mars/MEI validator, the recommended model is found here. Please select Option 4.
If you need a Nayax card reader, the recommended model is found here.
- Vendor ModelOption 1 - Automatic Products 4000 & 5000 - includes 10 ft MDB extension cable
Option 2 - Automatic Products 11x Series
Option 3 - Automatic Products C Series - includes 10 ft MDB harness for optional bill acceptor
Option 4 - Automatic Products 6000 7000
Option 5 - Automatic Products C Series
Option 6 - Glasco 490
Option 7 - VS99
Option 8 - VS99 - with validator mounting
Option 9 - LVC40
Option 10 - National Vendors 474 combo
Option 11 - National Vendors 145 146 - Snacktron 1 Snacktron 2
Option 12 - National Vendors 147 148
Option 13 - Polyvend 4432 6632- 4000 5000 6000 - 2 red LEDs on board
Option 14 - P701
Option 15 - Polyvend R32 - Ultra 32 - R40 (slim board 2 dip switches)
Option 16 - Rowe 4900 (triple board version)
Option 17 - Rowe 4900 (single board version)
Option 18 - Rowe 6800 & 7800 machine must have 12 or 15 pin female socket for changer
Option 19 - Rowe 5900
Option 20 - Savamco 1642
Option 21 - Snack Mart 3 - Fits models: 3013
3014
3015
3039
3076
3077
3049
3044
3045
3046
Option 22 - Model 669 refrigerated candy
