How do I remove my Dixie Narco Bev picker cup?


Please view and follow along with the pictures below to properly remove your Dixie Narco picker cup

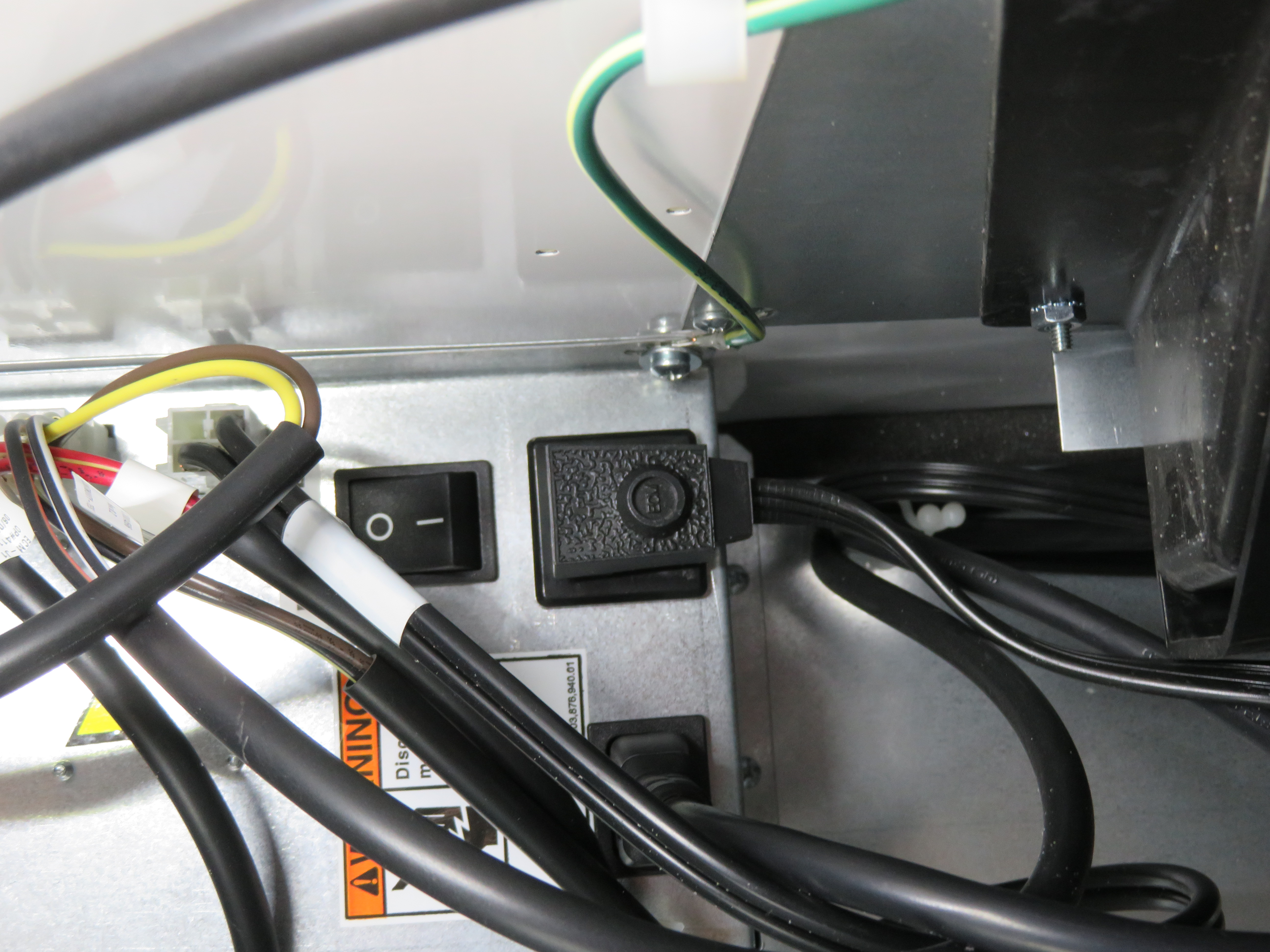

Step 1:

Turn off the machine by pressing the power button to the O configuration as pictured

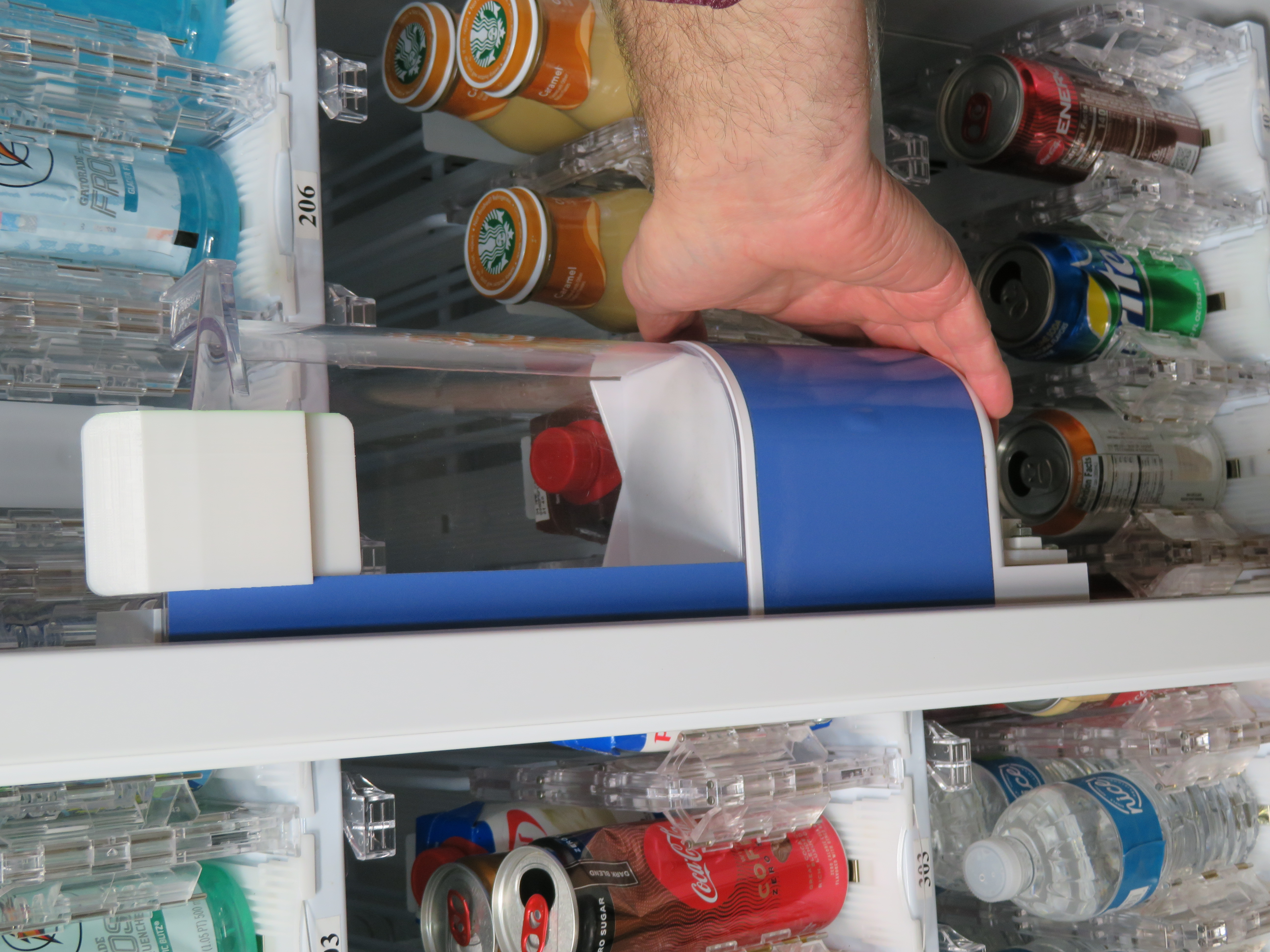

Step 2:

Push up the picker cup to shoulder height

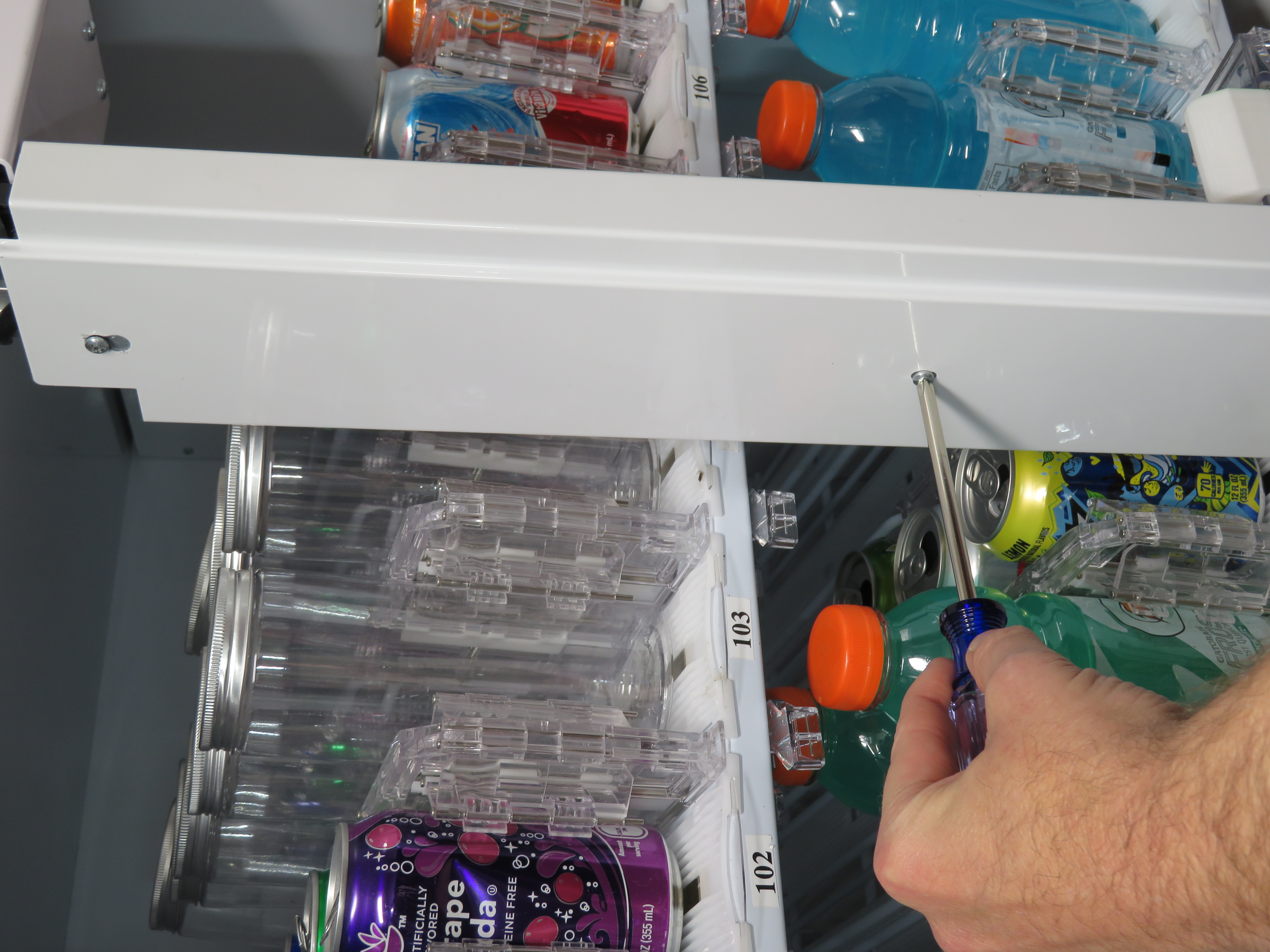

Step 3:

Unscrew the middle and bottom screws

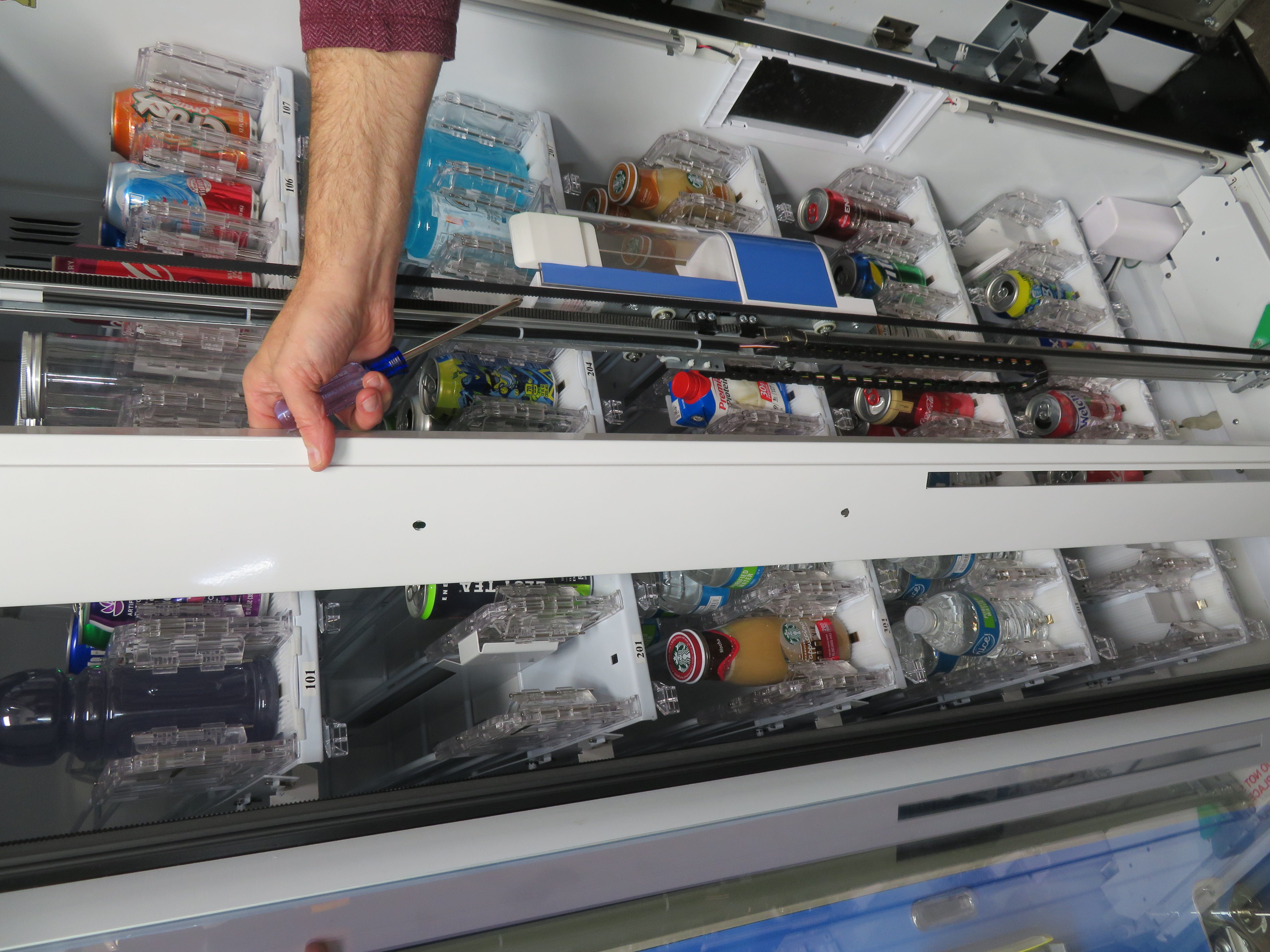

Step 4:

Lift up and pull out the white panel to remove it

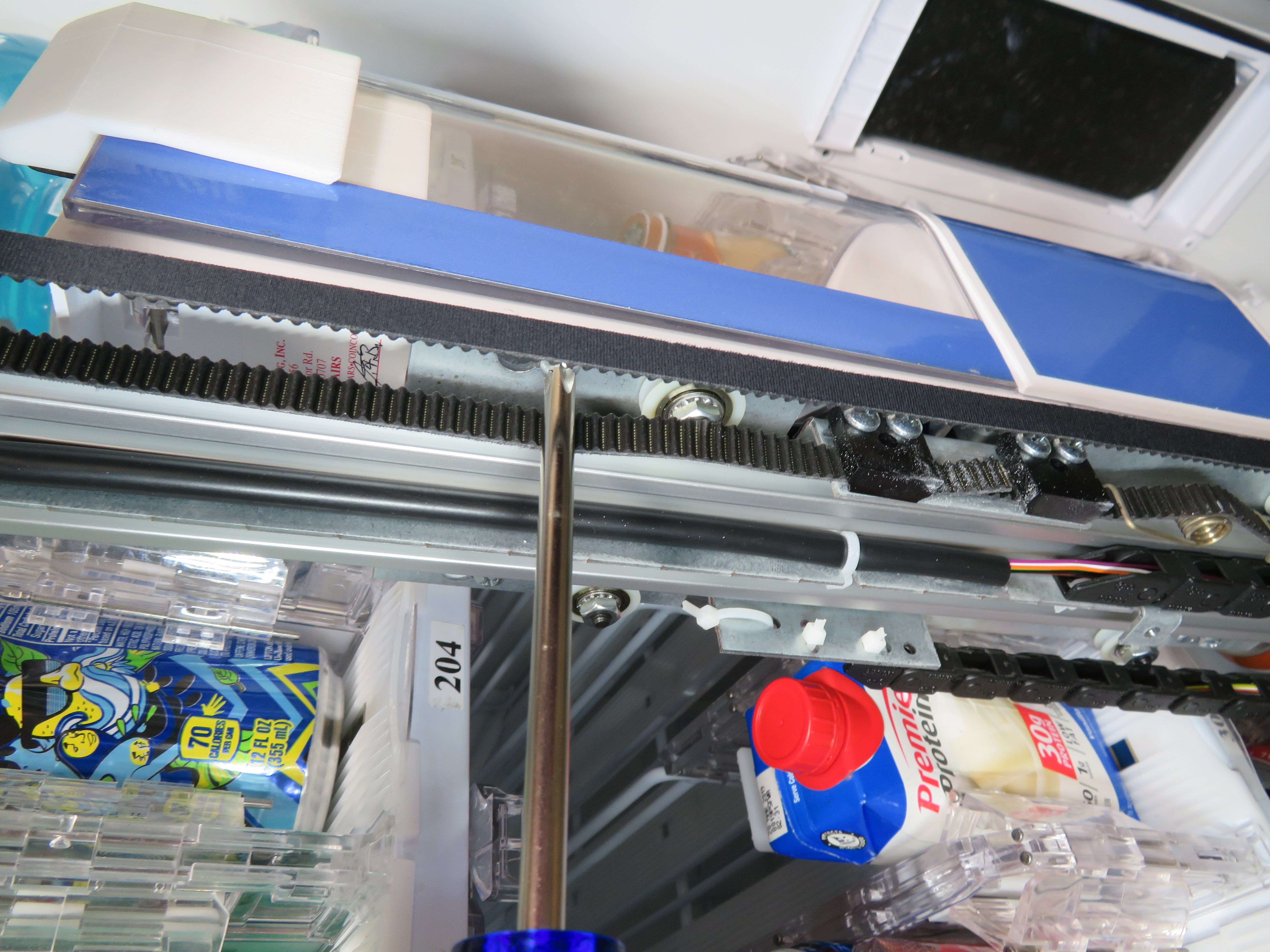

Step 5:

 Unscrew the screws on the back of the picker cup that holds it to the frame

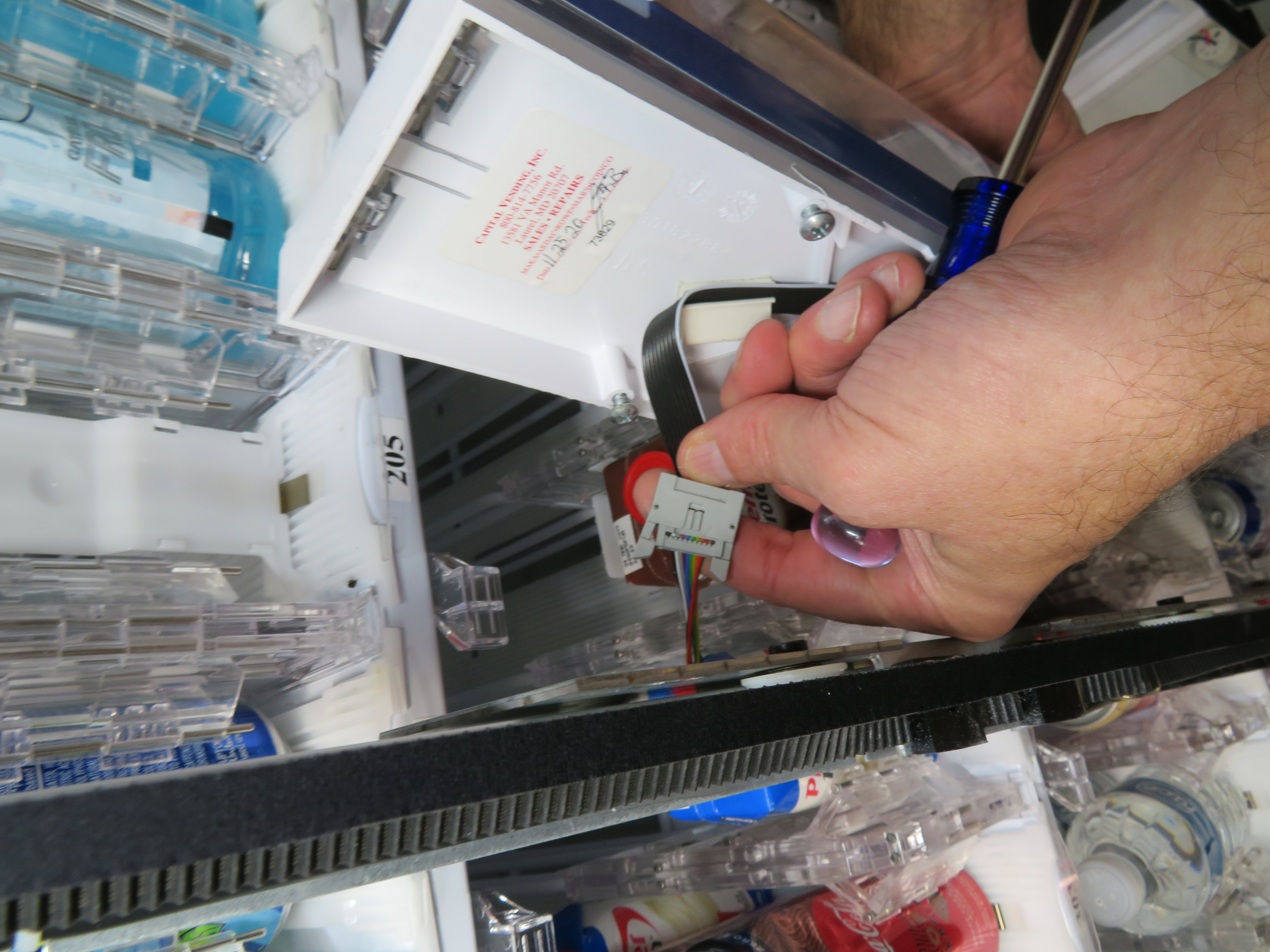

Step 6:

Carefully pull the tabs away from the center of the harness. Then pull out the harness from the harnessing. Do not pull it apart without pressing on the tabs first
